We have a David III 90 and a David III 110 now in stock and ready for pick or shipping!
For a limited time, you'll receive a $250 gift card with your David loom purchase.

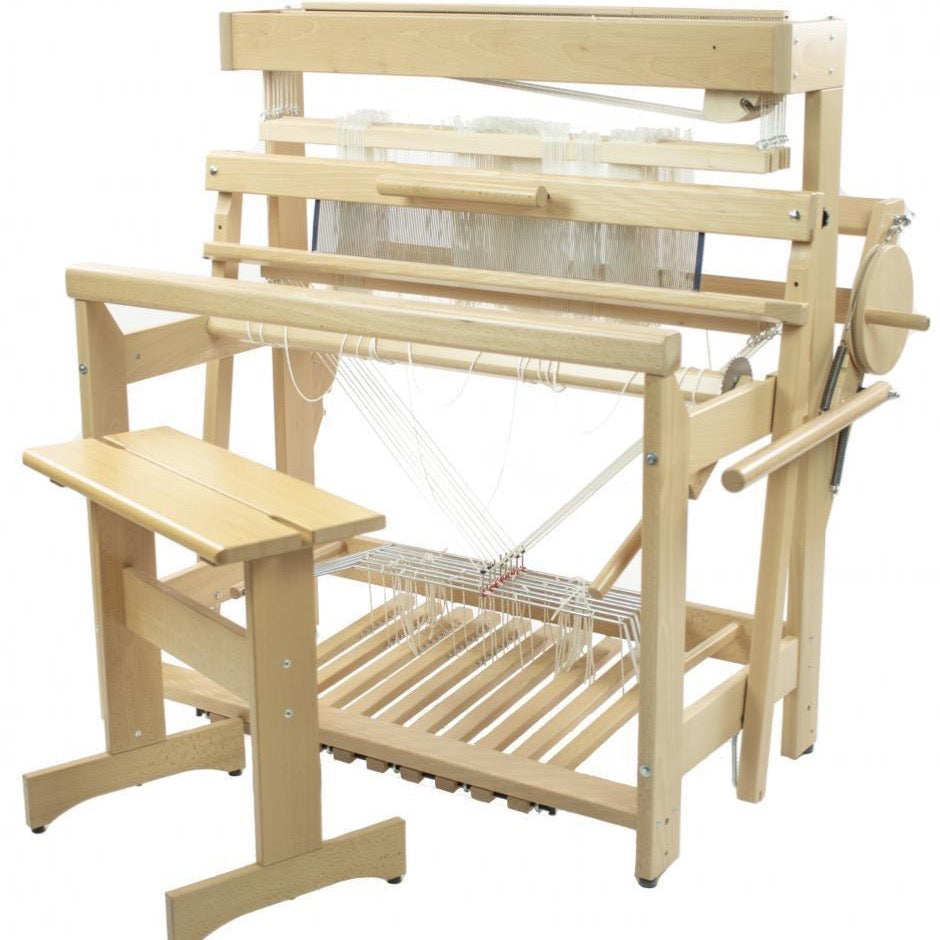

David III the newest model of David looms. It is a compact eight harness loom that looks modest, but in functional quality, it surpasses many large floor looms. It is available in 70 cm (27 5/8") and 90 cm (35 3/8") and a NEW 110cm (43 1/2”) weaving width. It is known for having a nice large shed.
solid beech construction with lacquer finish
floor hinged beater
castle section comes pre-assembled
cloth advance Lever
wooden cloth and warp beams
800 texsolv heddles (280 mm)
a stainless steel reed 40-10 (metric) (equal to Imperial 10-dent)
tie-up and lease sticks
sixteen warp sticks
a built-in raddle
How is it different from the David II loom?
It has a sturdier frame: the front posts, the main uprights and the foot rail are 27 mm thick (was 21 mm).
Standing beater, with a hinge point close to the floor, that results in smooth movement and a favorable pivot radius to strike the fell line.
The hinge hooks of the beater are mounted on the loom and not on the beater uprights. This makes it easier to remove and replace the beater.
The warp beam and the cloth beam have a larger diameter. This requires fewer revolutions to wind your warp beam and therefore less tension discrepancies in the warp threads. The sectional warp kit now has space for 4 bars that attach to the warp beam, instead of 3. This improves assembly and function.
A new cloth beam advance lever was added. It has a magnet that holds the pawl in the ratchet wheel, allowing you to advance more fabric with one movement of the handle.
The breast beam has countersunk holes to make it easier to mount the beam on the front posts.
The tie-up cords for the treadles are permanently connected to the lams and can be moved above the treadles where you need them. The screw heads on the treadles are slightly smaller, making it easier to hook on the cords.
The tension brake on the warp beam is no longer an accessory, but standard. The brake disc is much larger and is now also a crank handle with which you can wind on your warp. The handle rotates in the disc, not in your hand.
The shaft height can now be adjusted with a knurled nut and the horizontal adjustment with a screw. Therefore the small texsolv pins in the cords are no longer needed.
Folding the David is easier and there are no loose parts that can get lost.
Included are two wooden raddle covers that you can slide over the raddle. These are useful for inserting the warp threads into the raddle and then they close the raddle when winding on your warp.
Two side clamps are included and useful when setting up and threading the warp.
In addition to the assembly instructions, there are instructions on how to dress the loom.
Accessories Available for purchase separately:
>Bench - height 57 cm (22 3/8") >Second warp beam with back beam >Sectional warp beam >Flying Dutchman shuttle
